Long-Range UHF RFID Reader
Vehicle access credential reader • UHF 902–928 MHz • Wiegand (26-bit) output
Provide hands-free vehicle access at gated entrances. UHF RFID tags mounted on the windshield, headlight, or near the license plate are read as the vehicle approaches, and the credential is passed to the Protector.Net access control system to initiate gate operation.
How it works
As a vehicle approaches, the reader captures the tag credential and outputs it to the access control panel. The panel validates the credential and activates the configured output (e.g., gate operator or relay).
Key features
- Long-range UHF read performance for vehicle approaches
- LED status indication
- Relay output support
- Input voltage: 12–48 VDC
- Wiegand output: 26-bit
Core specifications
- Operating frequency: 902–928 MHz (UHF)
- Antenna type/gain: linear, 10 dBi
- Typical read range: 18–25 ft (5.4–7.6 m)
Applications
- Parking and gate access control
- Gated communities and controlled lanes
- Hands-free vehicle credentialing

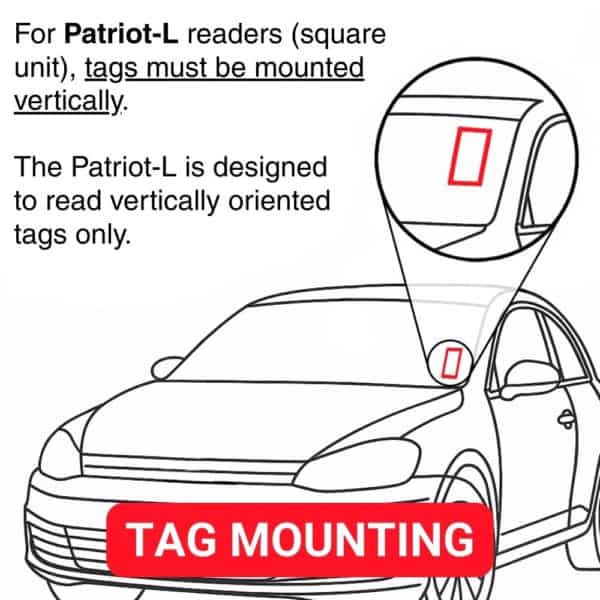

Tag placement
- Windshield (interior mount)

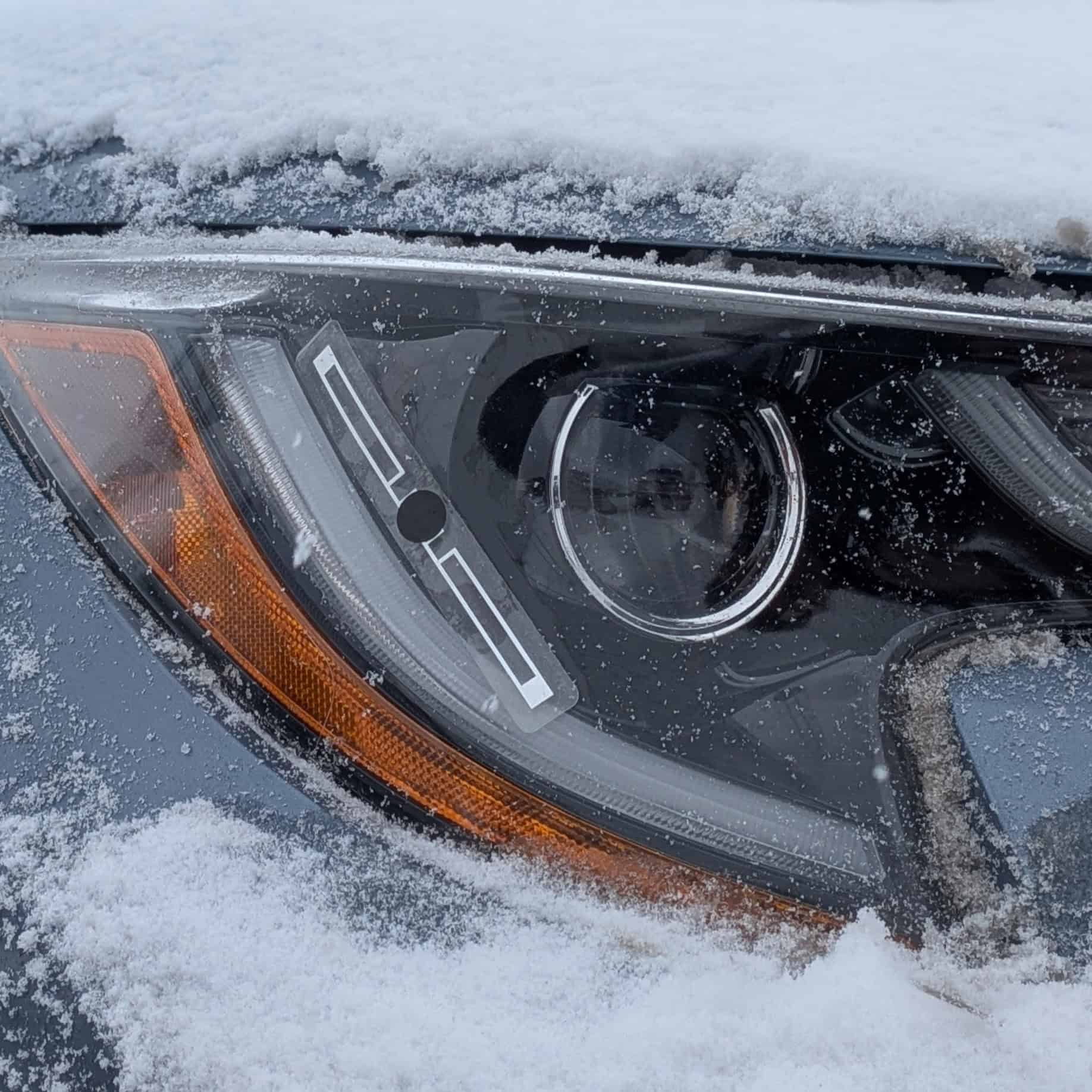

- Headlight
- Near license plate
