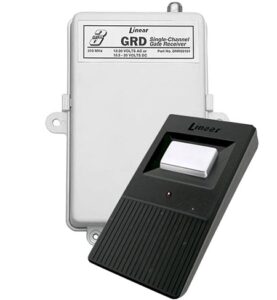

GRD Single-Channel Gate Receiver & Remote Antenna Kit
Add reliable, long-range access control to your automatic gate operator with the GRD single-channel receiver.
Designed for installations that require a remote antenna, the GRD uses the Delta-3 radio format and provides
256 selectable codes via easy DIP-switch configuration—ideal for secure, dependable entry control in residential
and light-commercial applications.
Key Features
- High-capacity output relay: Single Form A (normally open) relay rated 30 VAC/VDC up to 5 A.
- Remote-antenna ready: Includes whip antenna, 3 ft coaxial cable, and bulkhead connector.
- Flexible power input: 12–30 VAC or 10.5–30 VDC.
- Simple, secure setup: 256 selectable codes configured via DIP switches.
- Proven RF performance: 310 MHz operating frequency.
- Compact enclosure: 3.625 in (W) × 5.25 in (H) × 1.5 in (D).
